第三代
半導體測試家族
Third generation semiconductor testing family
首頁 產(chǎn)品中心 Laser Mark Fiber optic series laser marking machine
分類

Video positioning and marking machine

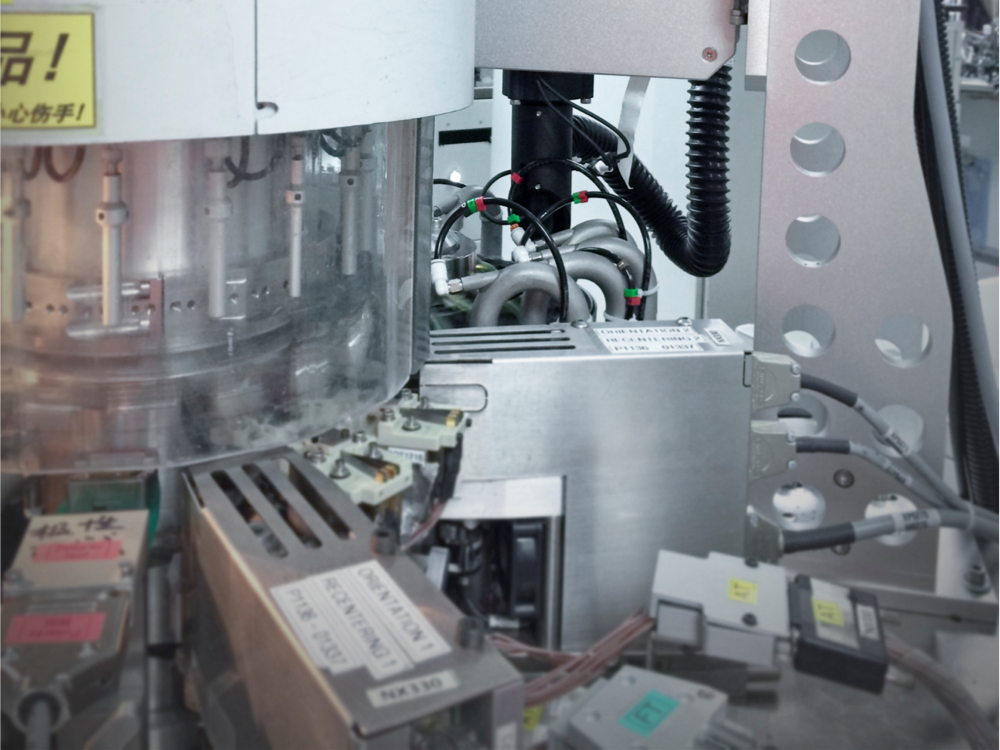

Vision high-precision single-piece marking or flash removal is mainly used with high-speed turret-type Handler. Using a high-speed galvanometer scanning system, the marking accuracy is high and the performance is stable, which greatly improves the product



Suspended power supply

Multiple sites in parallel

Multi-channel high precision

Supports multiple extensions

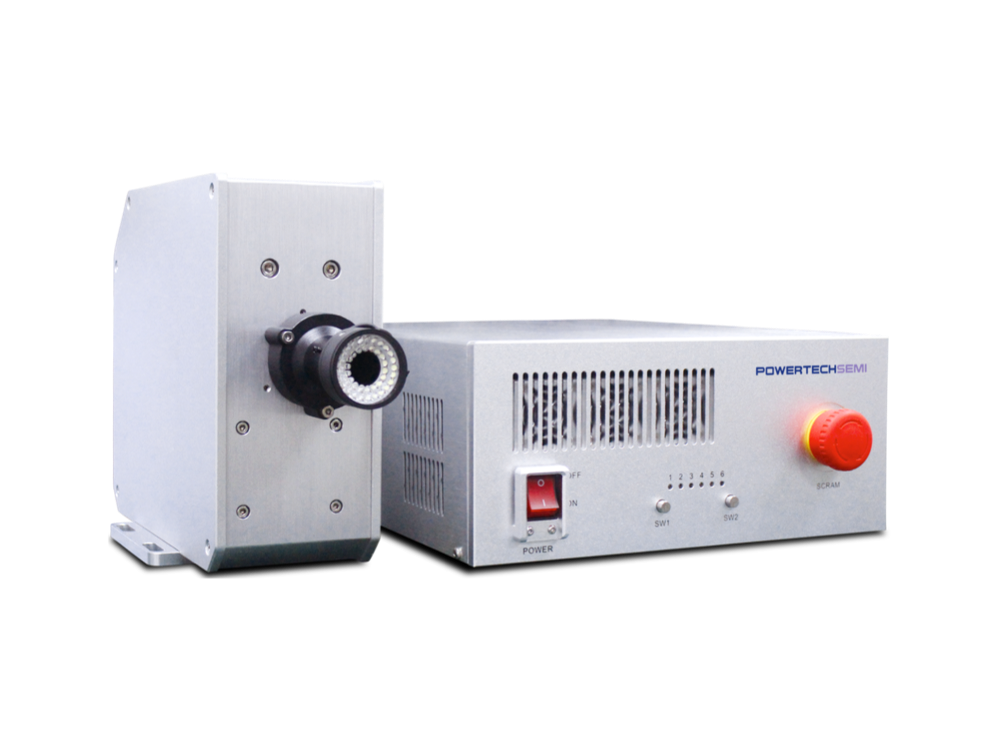

Type Video positioning and marking machine
Advantages The Vision non-contact visual inspection system is used to quickly determine the position coordinates of the device and simultaneously send the information to the laser marking system.
Based on the coordinate information detected by Vision, the system adjusts the printing content to the corresponding position for engraving, which greatly improves the printing accuracy of the product.
Vision and marking software/hardware are derived from PowerTECH; they have high compatibility and can be designed into embedded integrated or split structures according to customer requirements.
Main Features ? UPH:50K
? Laser system: Continuous/pulsed Fiber laser (optional)
? Laser wavelength:1064±10nm
? Power:5/10/20W
? Output power:420W
? Power supply: 220V AC 50-60Hz
? Marking range: 50X50mm
? Minimum line width:0.02mm
? Minimum character height: 0.12mm
? X, Y direction offset accuracy: 0.05mm
? Angle offset accuracy:<4°
