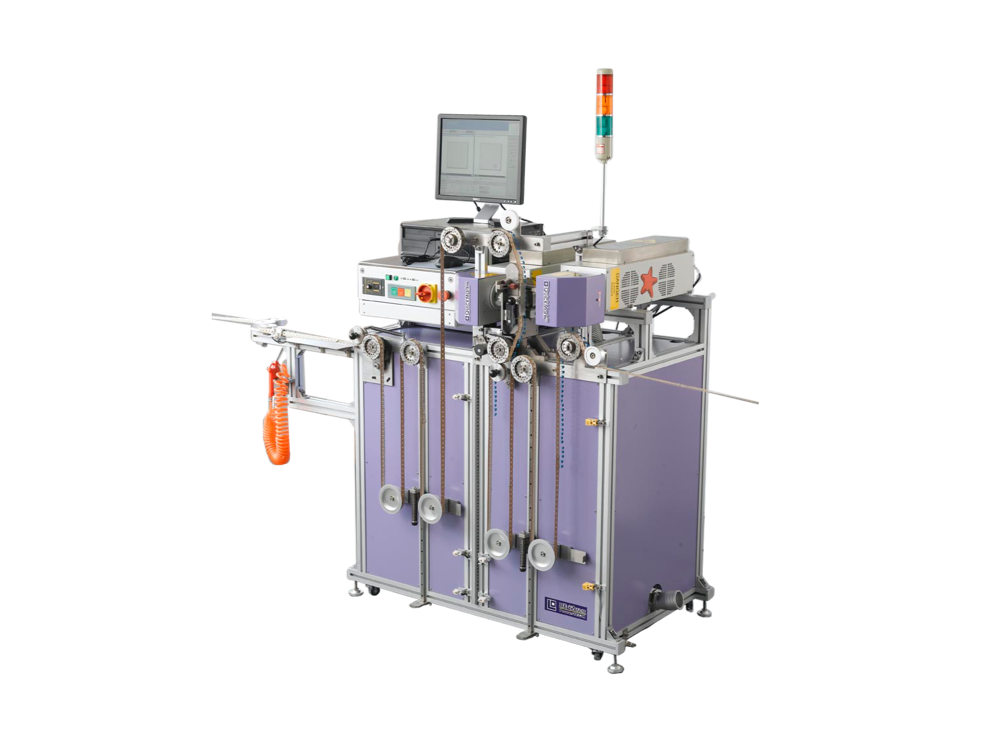

10W/30W Taping Capacitive Laser Marking Machine

It is used for single and double-sided marking of φ8-φ18 tape capacitors. It can be designed and manufactured according to the actual production and application requirements of customers, and only requires simple adjustments on the rails. Printing is accu



Suspended power supply

Multiple sites in parallel

Multi-channel high precision

Supports multiple extensions

Type 10W/30W Tape capacitive laser marking machine
Advantages The whole machine has a compact structure design and adopts imported fully enclosed CO2 low-power laser with stable performance.
Air cooling is maintenance-free, and the average continuous trouble-free working time can reach more than 30,000 hours.
Using high-speed galvanometer scanning system and professional strip feeding track, it is used for high-speed flight marking.
The core control software is derived from linkage and has excellent performance. The seal editing and uploading operation is simple and convenient, with automatic counting and anti-reverse functions.
Main Features ? Laser system CO2
? Laser center wavelength 10640nm
? Laser output power 10/30W
? Marking range: 50x50mm, 70x70mm, etc. optional
? Minimum printing line width 0.06mm
? Minimum font height 0.5mm
? Input power 220V±10%/50HZ
